Open WiFi Settings on your phone or other device.

Remove the cover of Elliot, by depressing the clasps at the bottom OR

Use a slim object such as a small screw driver, insert into hole on the front of Elliot and depress the button inside for 4 seconds.

The green LED will flash quickly when you have depressed the button for the required time.

On your phone or other device WiFi settings screen, select the network beginning with EVHACS.

If prompted for a password, enter the EIN (Elliot Identification Number) from the label on the inside cover of the Elliot.

Note: this number is unique to each Elliot.

Once successfully connected to Elliot’s network, a Captive Portal with the Elliot installer app should open.

On some phones this app does not automatically open, if this happens, go to the next step.

Open a web browser on your device, enterhttp://192.168.4.1

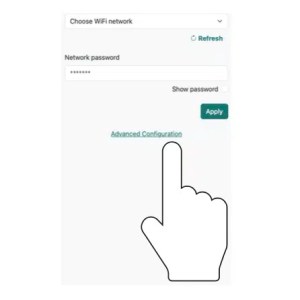

The EVHACS installer application will appear.

Select
